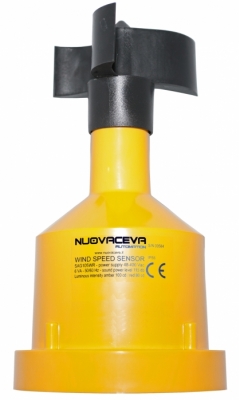

Advanced anemometer model

ANEMOMETER Intergrated alarms for cranes and output pulse

Anemometer with alarm beacons and buzzer,commanded by 2 adjustable thresholds. Thanks to its special design, the rotor doesn't generate any perturbation in the surrounding air flow in such a way as to preserve the excellent accuracy of the instrument.

The employment of magnetic sensors, allows the access of the wind speed signal inside the anemometer without compromising its waterproof features.

  • Automatic selection of supply voltage from 48 to 400Vac (available) 12-24 Vdc model too
  • Compact
  • Waterproof
  • Sturdy
  • Exclusive design
  • Reliable
  • Economic
  • Easily installable
  • Adjustable alarm set points
  • Designed for heavy duty use
  • Verified in wind tunnel
  • Patented
Request information about this product

Mechanical Features


Safety can be improved reducing the speed of the alarm and prealarm set point

Prealarm threshold

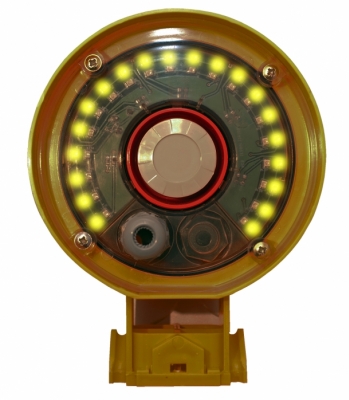

Yellow lamp and siren are intermittently activated for values of wind speed comprised between 50 and 70 km/h.

Alarm threshold

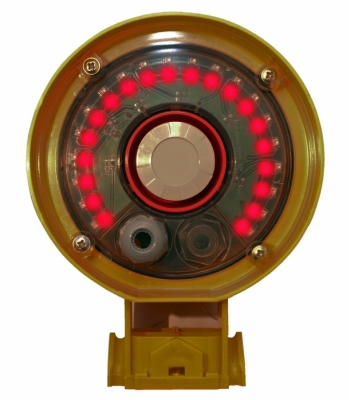

When the wind speed exceeds 70 km/h, red lamp and siren are continuously activated until the wind speed drops below the alarm set point (Switch 1 = OFF), or until the equipment will be switched off (Switch 1 = ON).

The procedures to reduce alarm and prealarm set points and enable/disable the retentive working of the alarm signals.

Magnets, flanges and supply cable, assure a great simplicity of installation. Reliability and accuracy specifications of every SAG-105WR, are verified in wind tunnel tests.

  • Operating temperature -20°C a +60°C
  • Dimensions 195x150x270mm
  • Weight 3 kg (cable included)
  • Magnets strenghts >90Kg

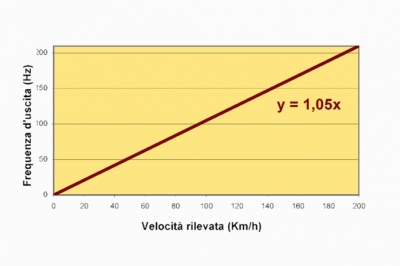

Relation Between Speed And Pulse Output

To calculate the output frequency, multiply the wind speed in km/h by 1,05.

Mechanics

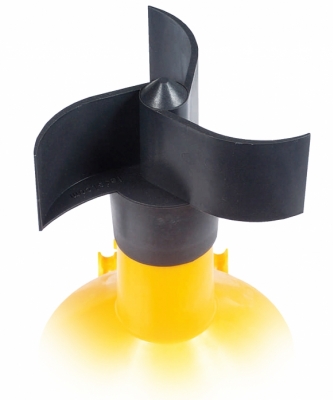

The anemometer is constituted by a rotor in plastic resistant to UV rays, at low temperatures and hail. Rotating on ball bearings, drives a magnetic contact generating 4 pulses per revolution.The aerodynamic shape, has been specifically designed to prevent the formation of ice on the surface of the structure and around the rotor.

Electrical Features


At the bottom are easily visible the two crowns of high-brightness LEDs that generate a warning flash when the thresholds of wind set, while the central part is housed a BUZZER high-intensity sound working simultaneously power of visual displays.

  • Multi-voltage switching power supply 48-400 Vac
  • Power consumption 6 VA max, 0.5 VA st.by
  • Measured speeds from 0 to 200 km/h
  • Sound power 115 dB
  • Luminous intensity of 100 cd orange LED PRE-ALARM THRESHOLD WIND
  • Luminous intensity of 80 cd red LED ALARM THRESHOLD OF STRONG WINDS

By setting the dip-switches on the ad, you can set 4 different levels of pre-alarm and alarm wind:PRE-ALARM LEVELS:
  • 20 km/h
  • 30 km/h
  • 42 km/h
  • 50 km/h

BUZZER
ALARM LEVELS:
  • 30 km/h
  • 40 km/h
  • 70 km/h
  • 70 km/h

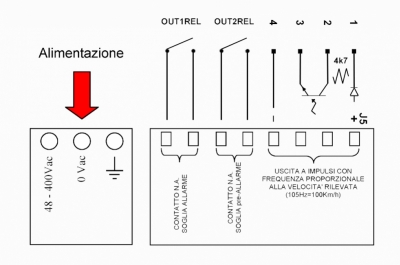

Terminal Boards


Pulse output proportional to wind speed and 2 relay outputs operating in parallel with the alarm and pre alarm thresholds

Regulations


Protection:
  • IP55 (UNE 20324:1993)
  • IK08 (UNE-EN 50102:1996)

EMC:
  • EN 61000-6-2:2001
  • EN55022:2001, Class B

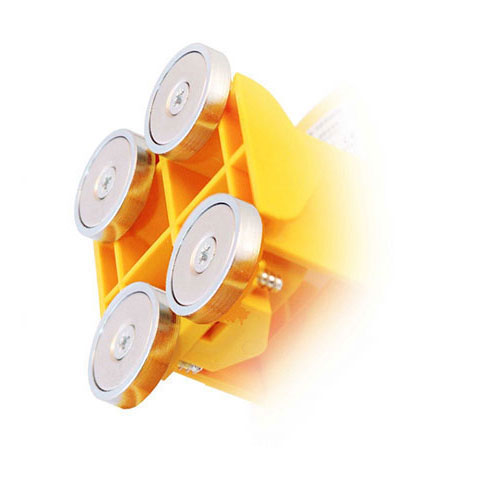

Anchor Magnets


The supplied kit includes anchoring magnets to facilitate installation in the presence of flat surfaces and not suitable for the clamping. The convenient and quick installation by magnets guarantees a fixing force of around 90kg.

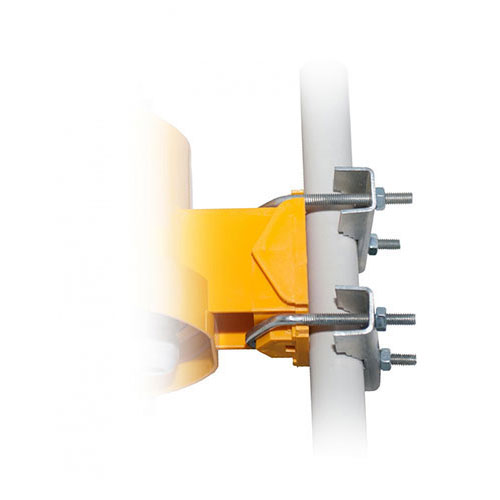

Fixing Bars


The kit includes 2 brackets for fixing to the metal structure such as tubular or vertical mantle bars.

Flanges


The flanges allow to fix the device on irregular elements with maximum dimensions equal to about 63mm of height and 45mm of width

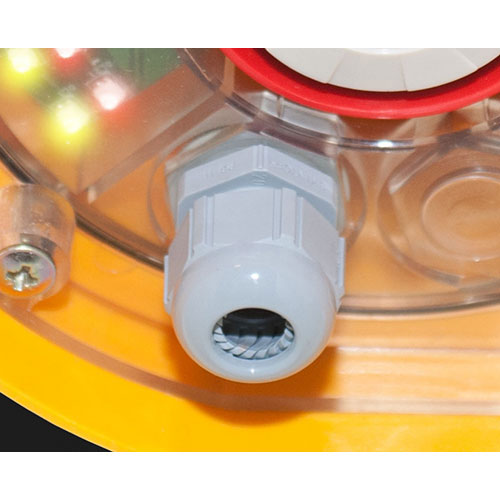

Cable Entry


In the lower part there are cable gland entrances for the connection of electrical power supply and optional outputs.

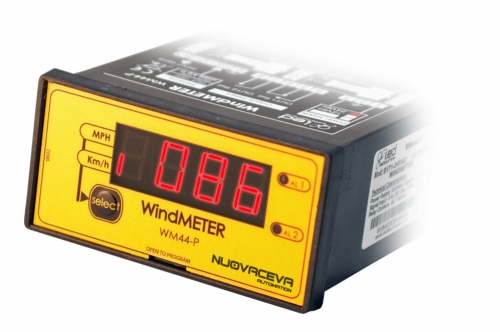

WM44-P


CONTROL UNIT

Go to the products

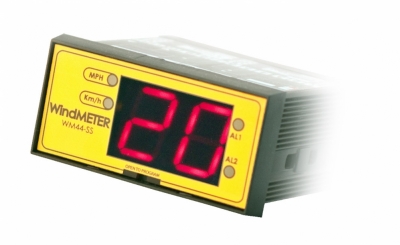

WM44-SS V3


SMALL CONTROL UNIT

Go to the products

WM44-DRM


DIN RAIL DISPLAY UNIT ANEMOMETER

Go to the products

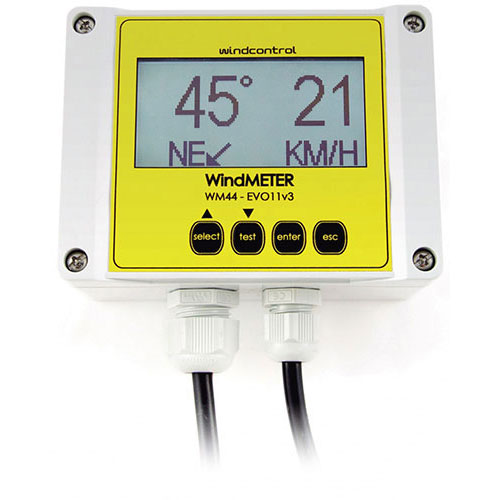

WM44P-EVO11
