ANEMO4403 | Hz

Plastic Rotating Anemometer with Reed contact

ANEMO4403 | Hz

A simple, reliable and robust for heavy use in industrial environments. The special shock-resistant materials used in the construction of the rotor and the use of special bearings, give this speed sensor unique characteristics of great mechanical strength and high accuracy in the detection of wind speed.

The Anemometer ANEMO 4403 has been specifically designed for industrial applications such as:

  • Cranes and Mobile Cranes
  • Buildings and general structures
  • Photovoltaic solar trackers
  • Weather Stations
  • Irrigation systems
  • Automated greenhouses
  • Cable cars for ski plants
  • Cannons snow
  • Telescopic cranes
  • Platforms self-mounting
  • Structures for playgrounds
  • Ornamental fountains
  • Pressostatic structures
  • Highway tunnels and viaducts

It can be connected through the various outputs available depending on the model directly to PLC and / or board electronic market, tachometers WM44P as the model of our product range.


  • Techincal Features
  • Features
  • Standards
  • Display
  • Optional Items
  • Download

Mechanical Features

Mechanical Features

The anemometer consists of a plastic rotor impact-resistant and to UV rays, at low temperatures and hail.

Rotating on ball bearings, drives a magnetic contact, generating 4 pulses per revolution.

  • Dimensions shown in the following drawing
  • Weight 150 g without cable connection
  • Measuring range from 2 to 200 km/h
  • Accuracy ± 2%
  • Linearity ± 2%
  • Ripetibility 0,5%

Electrical Features

Model Input / Output Operation Graphic

ANEMO4403_2.0_CONN
Model with connector

connettore2



200Km/h wind speed maximum
Input: power supply 5-24 Vdc
Output: Reed contact with serial resistor that switch with proportional frequency / wind speed (see graphic).
It incorporates a capacitor which can be connected optionally to the signal filtering.

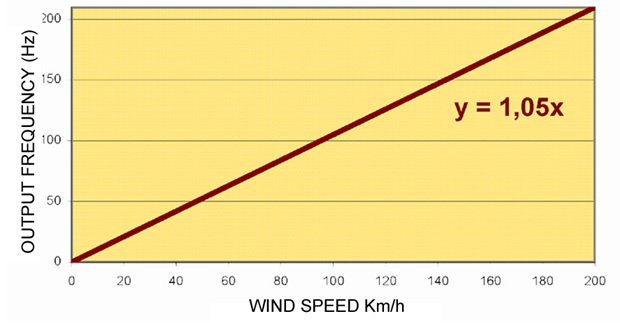

Wind speed / output relation.
Wind speed = 0Km/h->Output ANEMO4403 = 0 Hz.
Wind speed = 100Km/h->Output ANEMO4403 = 105 Hz (pulse per second).

5en

Example 2 wire connection (the number are the pin connector):

 1

Example 3 wire connection (the number are the pin connector):

 2

ANEMO4403_2.0_2,5
Model with cable cast



Example 2 wire connection:

 3

Example 3 wire connection:

4

Items ANEMO4403_2.0_CONN ANEMO4403_2.0_2,5
Power supply From 5 to 24 Vdc From 5 to 24 Vdc
Output Signal Frequency - 1,05 Hz / Km/h Frequency - 1,05 Hz / Km/h
Current /consumpt. 15 mA 15 mA
Electrical Range Measuring 2-200 Km/h 2-200 Km/h
Load Impedence Recommended From 1K to 4K7 ohm From 1K to 4K7 ohm
Connector YES NO
Cable Normal PVC 2 / 3 pole 0,5/1 sq mm Connected

Regulations

Protection:

  • IP65 UNE20324:1993

Communication:

  • IEEE 802.15.4 ISM 2,4 GHz

EMC:

  • EN 61000-6-2:2001
  • EN 55022:2001, CLASS B

WM44-P

WM44-P
CONTROL UNIT
Go to the products

WM44-SS V3

WM44-SS V3
SMALL CONTROL UNIT
Go to the products

WM44-DRM

WM44-DRM
DIN RAIL DISPLAY UNIT ANEMOMETER
Go to the products

WM4P-EVO11

WM4P-EVO11
WIND SPEED AND DIRECTION DISPLAY FOR OUTDOOR
Go to the products

Stainless Steel Bracket

Stainless Steel Bracket
The stainless steel bracket is an optional item. The simple shape simplifies the installation and anchor of anemometer.

Open Slot

Open Slot
At the bottom, an open slot facilitates the pre-wired for cable entry.

Polycarbonate Box

Polycarbonate Box
