Anemometer for industrial application
Plastic Rotating Anemometer with Reed contact
A simple, reliable and robust for heavy use in industrial environments. The
special shock-resistant materials used in the construction of the rotor
and the use of special bearings, give this speed sensor unique
characteristics of great mechanical strength and high accuracy in the
detection of wind speed.
The Anemometer ANEMO 4403 has been specifically designed for industrial applications such as:
- Cranes and Mobile Cranes
- Buildings and general structures
- Photovoltaic solar trackers
- Weather Stations
- Irrigation systems
- Automated greenhouses
- Cable cars for ski plants
- Cannons snow
- Telescopic cranes
- Platforms self-mounting
- Structures for playgrounds
- Ornamental fountains
- Pressostatic structures
- Highway tunnels and viaducts
It
can be connected through the various outputs available depending on the

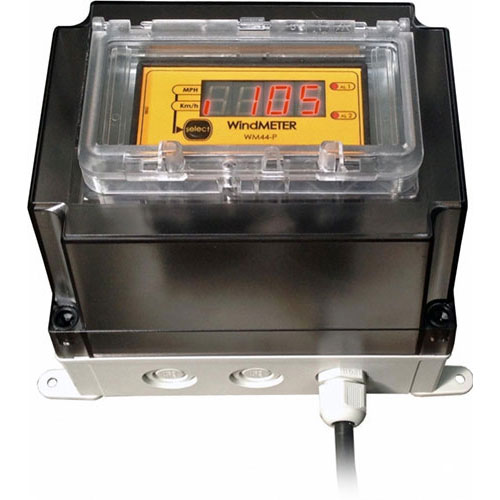

model directly to PLC and / or board electronic market, tachometers
WM44P as the model of our product range.
Request information about this product
Mechanical Features
The anemometer consists of a plastic rotor impact-resistant and to UV rays, at low temperatures and hail.
Rotating on ball bearings, drives a magnetic contact, generating 4 pulses per revolution.

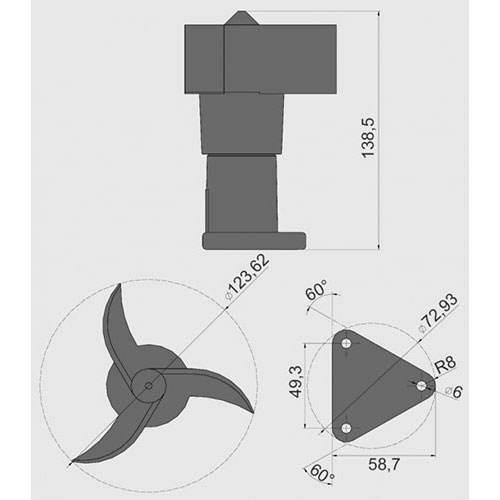

- Dimensions shown in the following drawing
- Weight 150 g without cable connection
- Measuring range from 2 to 200 km/h
- Accuracy ± 2%
- Linearity ± 2%
- Ripetibility 0,5%
Electrical Features
| Model | Input / Output | Operations | Chart |
| ANEMO4403_12/24mA
Model with connector | Model 120km/h up to 120 km/h of the wind.
Model 180km/h up to 180 km/h of the wind. Input:
With a power supply of 12 Vdc the maximum load is 275 ohm.
With a power supply of 24 Vdc the maximum load is 560 ohm.
Output: analogic proportional 4-20 mA | Relation Wind speed / Output.
The output current is proportional to the wind speed. Model F.S. 120km/h
Wind speed = 0Km/h->Output Anemo4403 = 4 mA.
Wind speed = 120Km/h->Output Anemo4403 = 20 mA Model F.S. 180km/h
Wind speed = 0Km/h->Output Anemo4403 = 4 mA.
Wind speed = 180Km/h->Output Anemo4403 = 20 mA | |
|
| Items | ANEMO4403_12/24mA_120 | ANEMO4403_12/24mA_180 |
| Power Supply | from 12 to 30 Vdc | From 12 to 30 Vdc |
| Signal Output | Current 4-20mA | Current 4-20mA |
| Current/consumption | Less than 2,5W | Less than 2,5W |
| Electrical Measuring Range | 2-120km/h | 2-180km/h |
| Load impedance recommended | At 12 Vdc of p.supply 200 ohm
At 24 Vdc of p.supply 800 ohm | At 12 Vdc of p.supply 200 ohm
At 24 Vdc of p.supply 800 ohm |
| Connector | YES | YES |
| Cable | Normal PVC 2 pole 0,5 / 1sq mm | Normal PVC 2 pole 0,5 / 1sq mm |
Regulations
Protection:
Communication:
- IEEE 802.15.4 ISM 2,4 GHz
EMC:
- EN 61000-6-2:2001
- EN 55022:2001, CLASS B

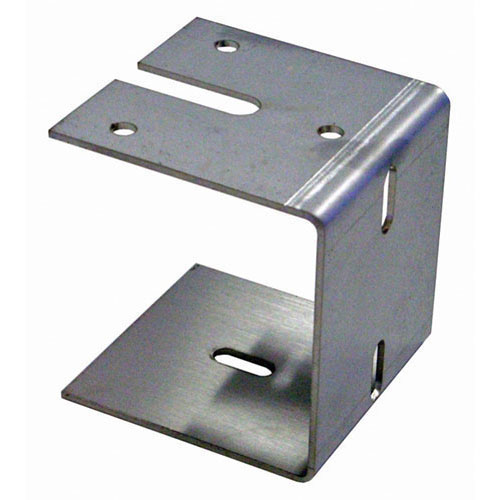

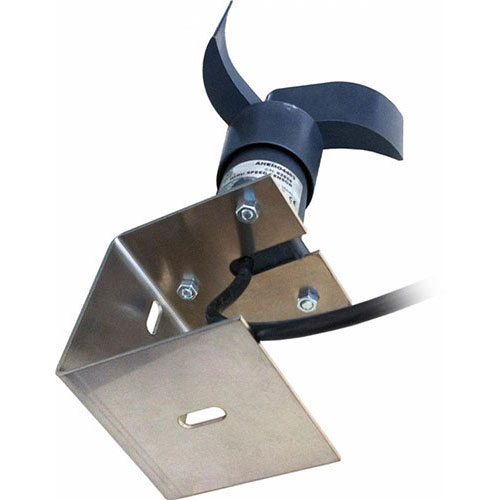

Stainless Steel Bracket
The stainless steel bracket is an optional item. The simple shape simplifies the installation and anchor of anemometer
Open Slot
At the bottom, an open slot facilitates the pre-wired for cable entry.
