ANEMO5H25 | Hz

Heated

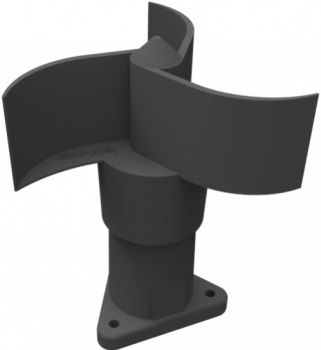

Wind speed measure anemometer for low temperature and ice

Anemometro professionale

The heating system of which the device is fitted, ensure the normal operation and even in the presence of snow and ice. The ANEMO5H25, can detect the wind speed even under extreme climatic conditions. The integrated heating system, in fact, prevents the formation of snow and ice deposits on top of the appliance, ensuring the smooth operation up to a minimum of temperature equal to -25 ° C.

Also for this reason, it is the optimal solution for all those applications relating to the wind speed detection in extreme conditions. Easy to use and small size, is particularly suited to be employed as a transducer for our WM44-P control unit. However, thanks to its great versatility, it is easily adaptable to a wide range of instruments for the visualization and control.

It can be connected directly to PLC and / or market electronic, tachometers and WM44P as the model of our product range.


  • Techincal Features
  • Features
  • Standards
  • Display
  • Optional Items
  • Download

Mechanical Features

  • Material PA + FV
  • Bearings stainless steel X65Cr13
  • Type of connection connector M12
  • Weight 150g

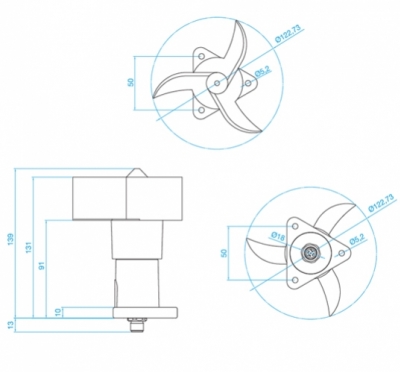

  • Dimensions shown in the following drawing
  • Storage temperature -35°C+80°C
  • Working temperature -20°C+60°C
  • Accuracy +-3%
  • Linearity +-3%

Electrical Features

 ItemsANEMO5H25_24VDC
Content Supplyda 5 a 24 Vdc
Contact max. current15mA
In/Out relation100 km/h = 105 Hz
Starting w. speed8 km/h
Heater power supply15 to 24 Vdc
Power consumption t. amb. >6°C (±+-3°C)
< 0,5 W
Average heating power at -20°C external temperature< 15 W
Max. heating power
1,8A @ 24 Vdc
1,2A @ 15 Vdc
ConnectorM12
Until 200Km/h of wind speed.Output: Reed contact with serial resistor that switch with proportional frequency / wind speed

Wind speed/output relation

  • The output frequency is proportional to the wind speed.
  • Wind speed = 0Km/h->ANEMO4H25 output = 0 Hz.
  • Wind speed = 100Km/h-> ANEMO4H25 output = 105 Hz (pulse per second).

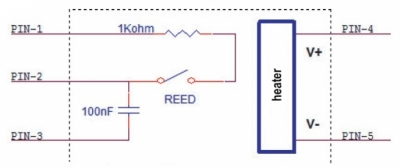

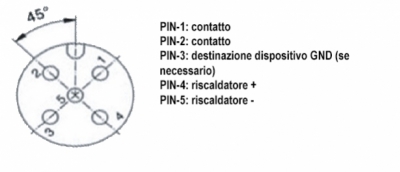

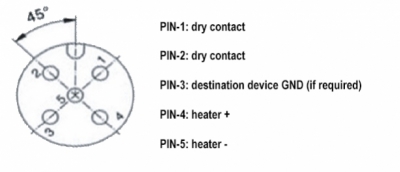

Wiring Diagram

Heated model wiring.

Regulations

Protezione:
  • IP65 (UNE 20324:1993)

EMC:
  • EN 61000-6-2:2001
  • EN55022:2001, Class B

WM44-P

CONTROL UNIT
Go to the products

WM44-SS V3

SMALL CONTROL UNIT
Go to the products

WM44-DRM

DIN RAIL DISPLAY UNIT ANEMOMETER
Go to the products

WM4P-EVO11

WIND SPEED AND DIRECTION DISPLAY FOR OUTDOOR
Go to the products

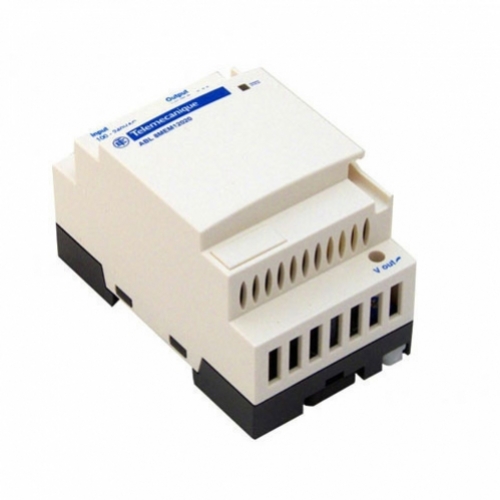

Stabilized Power Supply
