SAGA V6 Radio Remote Control

A new remote control for the functions control on automotive vehicles - RADIO PLL TRANSMISSION

SAGA V6
Saga V6 is the new Radio Handheld Series SAGA to manage the various applications of radio controls on self-propelled vehicles.

It is in fact designed to be installed in trucks and / or equipment for the industry where it is necessary to control certain functions by radio control.

It is used especially in the industrial sectors for the manufacture of:

  • Hook
  • Self-rescue
  • Platforms
  • Automated platforms
  • Trolleys towing DC
  • Crawler tracks for agricultural use

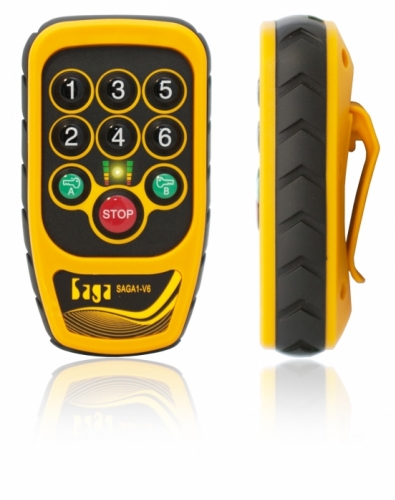

Shock-proof Transmitter


It is equipped with a rugged transmitter with a handy belt clip and a small size that easily portability.

The product works with 2 AA batteries to 1.5 VDC ensuring a long continuous transmission (button pressed) up to 150 hours.

Standard and Plus Receiver


There are 2 different receivers, the standard model and the model PLUS with additional push button retractable control in an emergency or in tandem with the transmitter.

This option is especially useful in situations of losing or failure of the transmitter.


Main Features


  • Multifrequency PLL radio with 3 systems settings: fixed frequency, LBT, ACS
  • Frequency from 869,700 to 870,000 Mhz
  • Operating temperature -40 ° +85 ° C
  • Range up to 100 meters in open field
  • 32 bit ID code
  • CRC error correction method with "cyclic redundancy check"
  • IP65

Transmitter Technical Features


  • H x W x D = 112 x 62 x 39 mm
  • Weight = 135 g (without batteries)
  • IP65
  • Power Supply 2 x AA 1.5 Vdc
  • Transmission power is adjustable in 3 levels = 1 mW - 3.2 mW - 10 mW
  • Maximum current consumption 30 mA
  • Consumption in "standby" 1.5 micro A
  • Security control buttons down
  • Power battery level LED indicator green / yellow / red

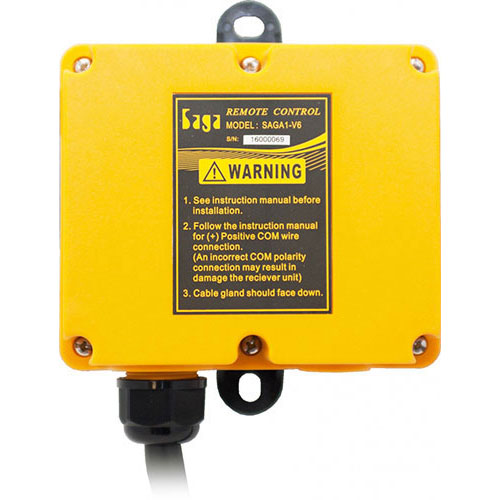

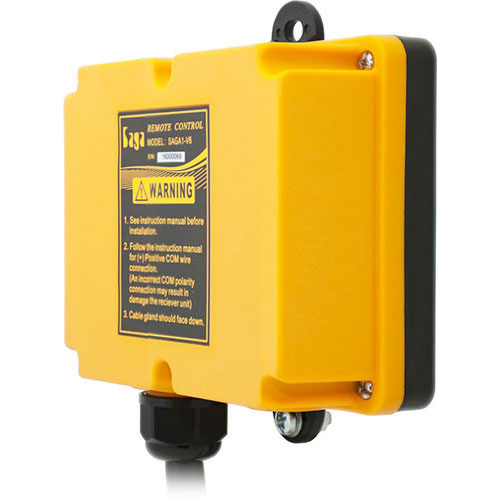

Standard Receiver Technical Features


  • H x W x D = 130 x 146 x 64 mm
  • Weight = 490 g
  • IP65
  • Power supply 10-42 Vdc
  • Consumption to 24 Vdc 24 mA in standby + 50 mA for each relay activated
  • 1 relay stop
  • 8 control relay contact N.O.
  • Relay contacts rated at 16 Vdc 20 A
  • Voltage isolation 15 KV

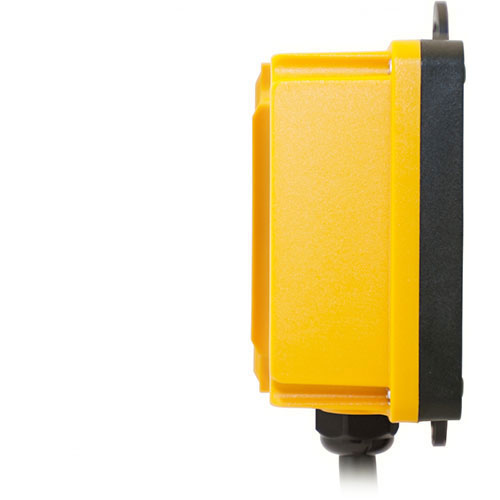

Plus Receiver Technical Features


  • H x W x D = 130 x 146 x 69
  • Weight = 525 g
  • IP65
  • Power supply 10-42 Vdc
  • Consumption to 24 Vdc 24 mA in standby + 50 mA for each relay activated
  • 1 relay stop
  • 8 control relay contact N.O.
  • Relay contact to 16 Vdc 20 AVoltage isolation 15 KV
  • Additional keyboard IP65 with door retractable

EC Regulations


  • Safety - EN 60950-1
  • EMC - EN 301 489/01 - EN 301 489/3
  • Radio - EN 300 220-1 - EN 300 220-2

    Global Approvals:

    • - R&TTE

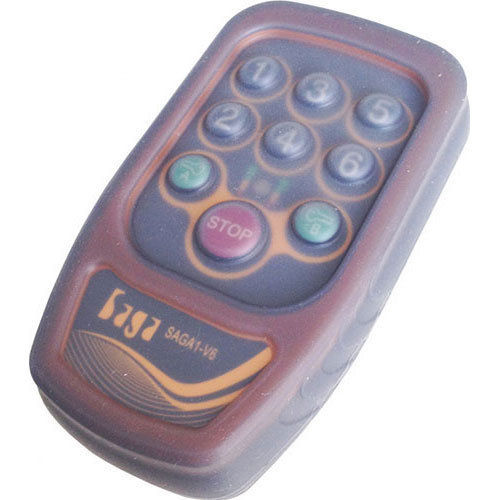

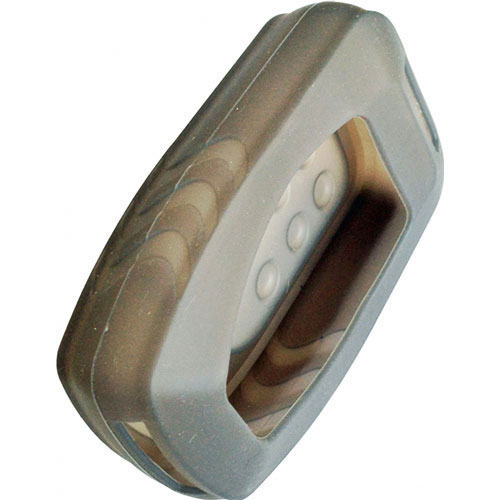

    Protective Cover


    The silicon rubber protective case is available as standard in each delivery kit

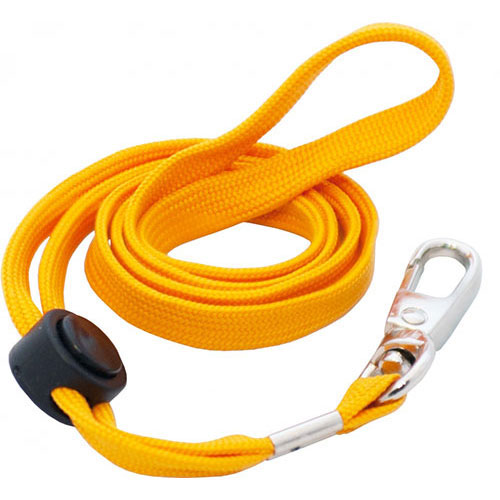

    Shoulder Strap


    Each transmitter has a pratical shoulder strap to be worn comfortably around the neck.

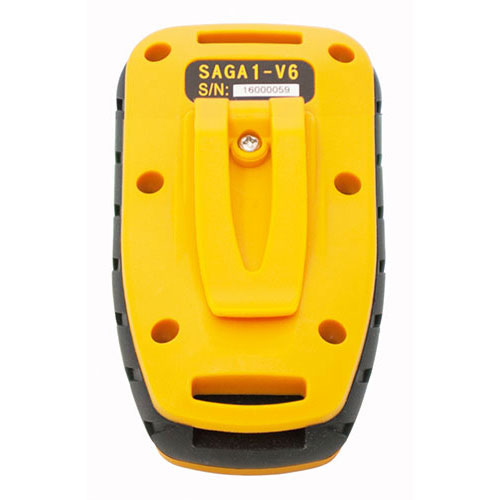

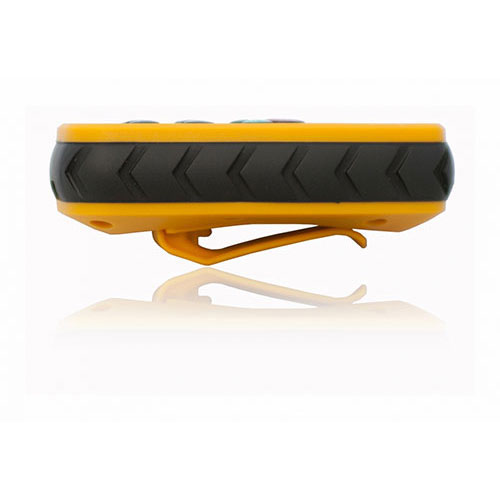

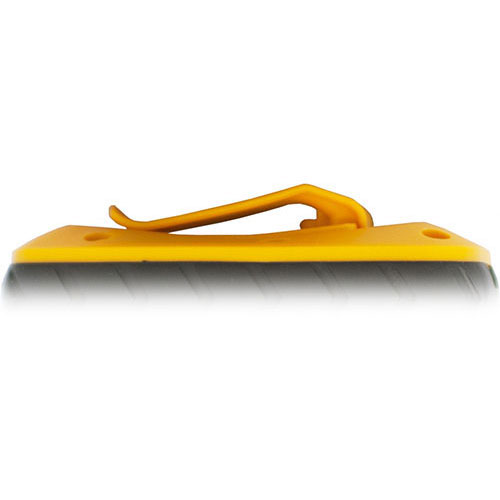

    Belt Clip


    Practical clip to be attached at the belt.

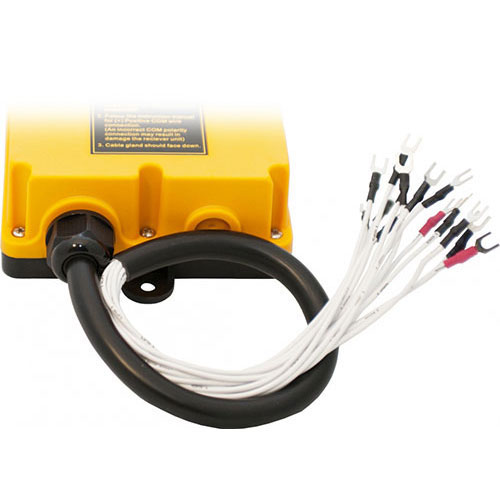

    Wiring Cable


    The receivers are already equipped with a numbered wiring cable corresponding to each function.

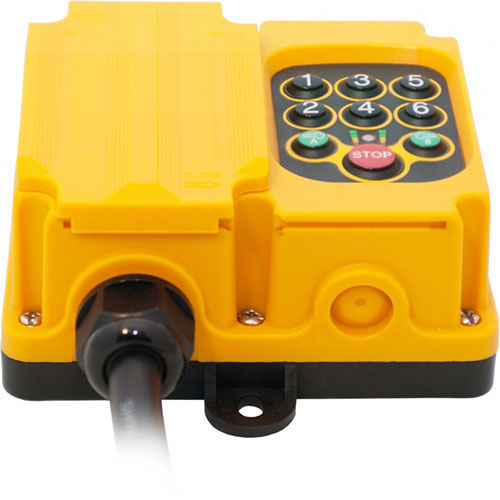

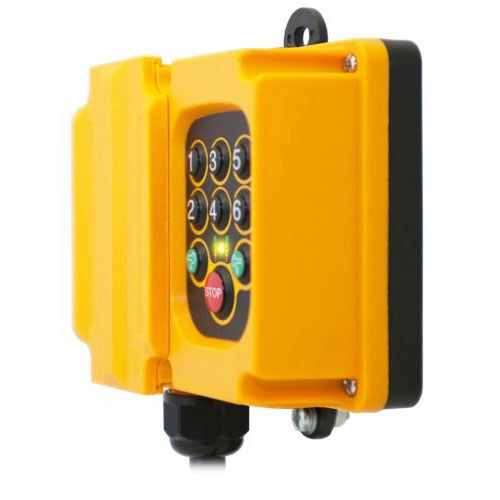

    SAGA V6 Plus


    It's available a receiver Plus version with a built-in keyboard that performs the same functions of the transmitter. Is very useful in emergency conditions when the transmitter is not available or it can be used in tandem with the transmitter where it becomes necessary to the combined control of two operators. Through the programming software you can determine which of the stations (keyboard transmitter keyboard or receiver) to the function of the master (priority) or allow use Take & Release controlled by which of the two made ​​the first access .

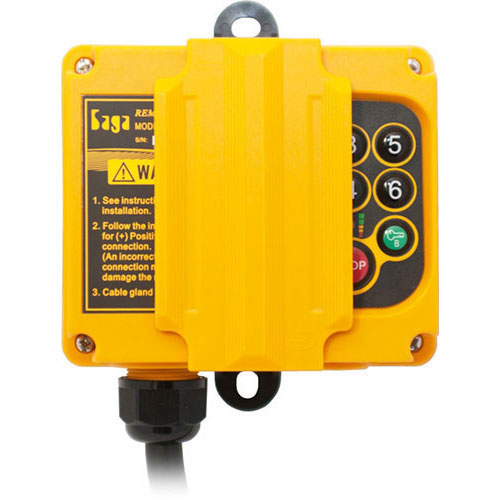

    The keyboard on the receiver is also protected by a sliding door that protects during non-use, although latter is otherwise sealed and therefore able to withstand external agents such as water and dust.

    Keyboards Symbols


    Through the use of a simple software, you can customize the labels button / function.

    Connection Remote Control with PC


    To be able to program, all you need is the software (free) to be requested by filling in the contact card and USB programming cable (optional), to be ordered with the kit remote control.

    Ask for the software via e-mail.

    Battery Charger:


    230 V

    Complete with 2 set of 2400mA rechargeable batteries.

    Multi Function Battery Charger:


    • 230 V
    • 12/24 V
    • Complete with plug for car, USB plug and 2 set of 2400mA rechargeable batteries.

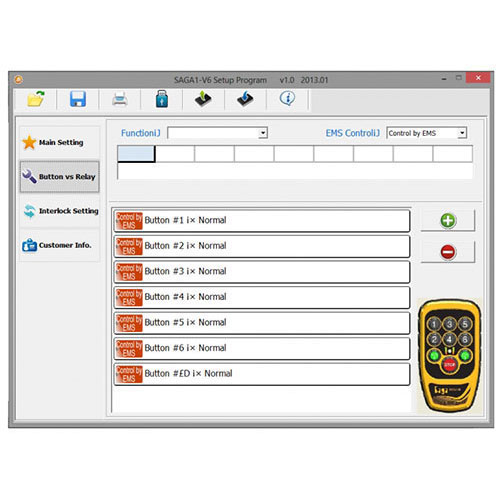

    Programming Software


    Each remote control can be customized in its operations through a practical and useful programming interface Software.

    Product Identification

    Once you're connected to transmitter unit via the USB cable, you can view the most important information concerning the serial number, the date of  entry field on the market, the frequency and certain rules of programming that are:

    • Type of operation Radio (single channel, automatic channel selection free)

    • Output power of low, medium, high

    • Group rate (from 1 to 10 in accordance with the regulations in the state where you install the remote control)

    • How to Start a single button or two-button security

    • Setting the Password

    • Delay setting to switch

    • Auto power off

    • Setting the time Emergency passive

    • Priority mode control unit transmitting or receiving keyboard (function only for SAGA-V6 PLUS)

    Programming Functions / Relay

    Each button can be programmed to traditional on / off monostable or on / off toggle, on / off coupled with 2 buttons, multi output time setting to activation and deactivation.

    You can also tie and untie the operation of the control buttons stop button main

    Select the Interlocks

    In this section you select the mode 's interlocking between the couple buttons and the time duration of interlock at the end of the pressure button.

    User's Information

    Each product can then be combined with a data sheet with all necessary data concerning the notes of master data and technical information on application running.

    Remote connection control with PC

    To be able to program, all you need is the software (free) to be requested by filling in the contact card and USB programming cable (optional), to be ordered with the kit remote control.
