Safety 12 pushbuttons Radio Remote Control Cat.4 SAGA K3-K4

To meet even the most complex machine - RADIO PLL TRANSMISSION

Industrial remote controls PLL multifrequency 70 channel

  • EMS stop complied with EN-ISO 13849-1 cat.4
  • Relay jammed detector
  • Receiver built-in horn (alarm)
  • Receiver pre-wiring cable ready for installation
  • Receiver F type antenna easy for extension
  • Emission power adjustable by software
  • Double CPU system to improve the safety
  • Special control function for operation of material handling magnets
  • Radio remote pairing of a new transmitter with a previously installed receiver
  • Interference detection system with automatic retuning
  • Receiver selection from the transmitter
  • Pitch & catch function to allow for transfer of operator control
  • PC software to easily change pushbutton functions and modify all system parameters

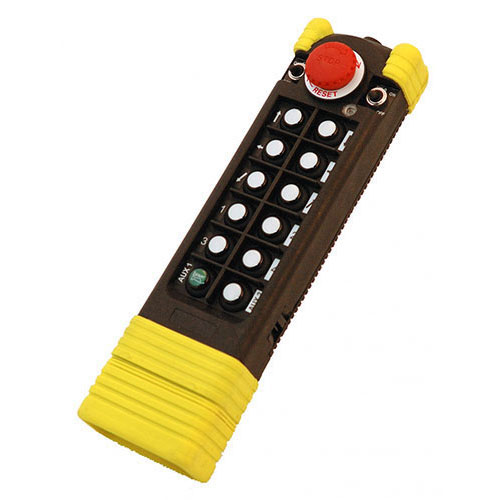

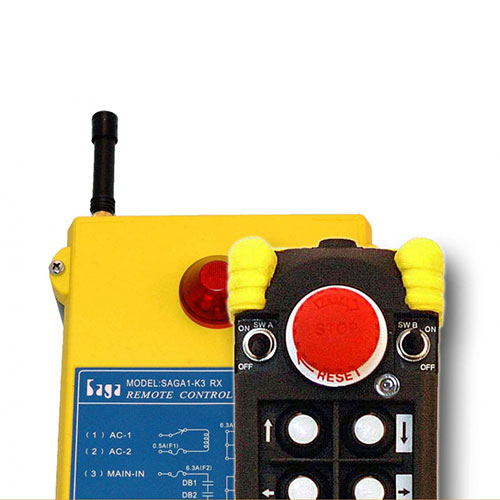

Transmitter Models


Request information about this product

Main Features


  • Frequency FM 433.0825/433.6875 Mhz
  • 70-channel PLL radio module
  • Operating temperature -45° +85°
  • Operating distance 100 m with obstacles / 200 m open field / 250 m with dipole antenna on receiver
  • Hamming Distance > 4
  • ID Code over 1 million sets
  • Channel spacing 25 KHZ
  • Enclosures ABS e glass-fiber IP65

Transmitter Technical Features

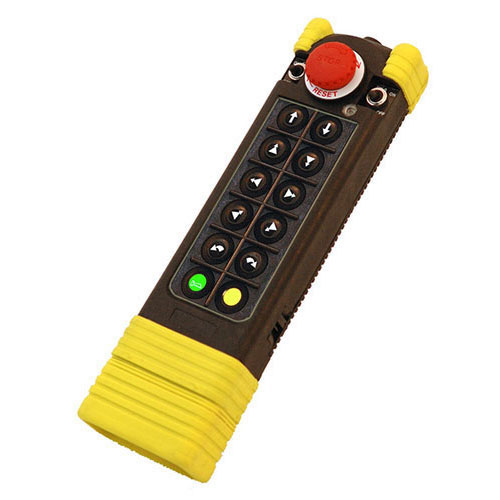

  • L x W x H= 274x77x42 mm
  • Weight: 385 g (without batteries)
  • Power Supply 4 AA size batteries
  • Output power < 10 mW
  • Max current consumption 30mA
  • Standby current less than 1µA
  • Jammed button detection
  • Low battery indicator
  • Shockproof
  • Customizable stickers
  • 11+1 command buttons 1/2 STEP + security key + start button + stop mushroom button + 0 -1 toggle switch

Receiver Technical Features

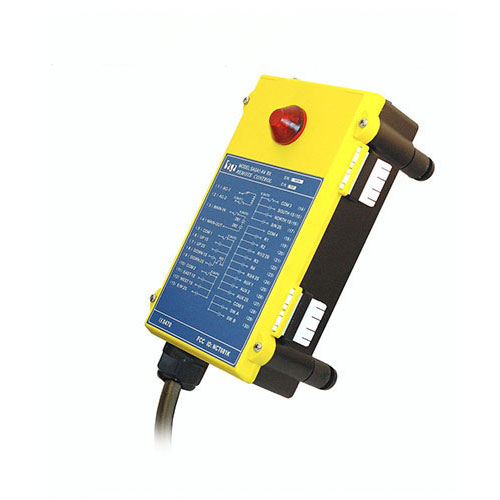

  • L x W x H = 310x170x95 mm
  • Weight: 1900 g (without cable)
  • Power Supply 12/24 Vac/dc – 24/42/230 Vac 48/110/220 Vac – 48/220/380 Vac
  • Current consumption at 24Vac/dc: 58mA in standby mode – 172mA with start relay activated + 18mA more for each relay
  • Contact relay 250 Vac 5 A
  • Voltage isolation 15 KV
  • Protective case IP65
  • Shockproof on antivibration
  • Remote antenna
  • Enhanced glass-fiber
  • Prewired for connection
  • 11 command relay (K3) + 7 two steps relay (K4) + start button with double relay + double stop relay with guaranteed opening

EC Regulations


  • Safety - EN/IEC 60950-1 EN60204/32
  • EMC - EN 301 489/01 - 03
  • Radio - EN 300 220/2
  • Directives - 73/72/CEE-93/68CEE-89/336/CEE

Global Approvals:
  • F.C.C.
  • RSS210
  • R&TTE
  • L.V.D.

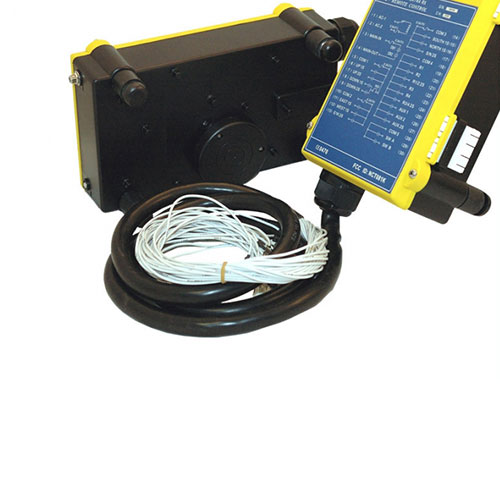

Receiver Fixing and Wiring Cable


Standard equipment with 4 shock absorber mount.

Standard connection cable wired.

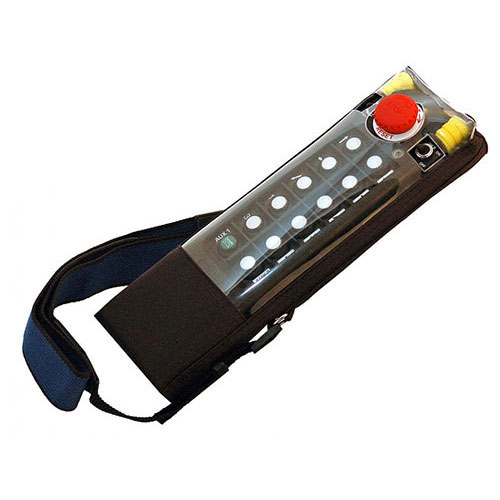

Cover and Strap


Standard provided with a practical case belt clip.

A handy wrist strap for added security while using.

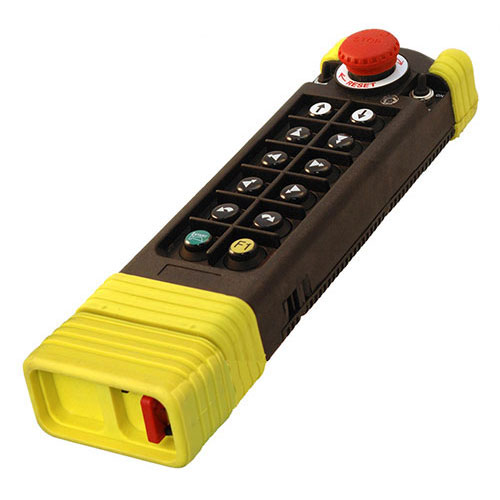

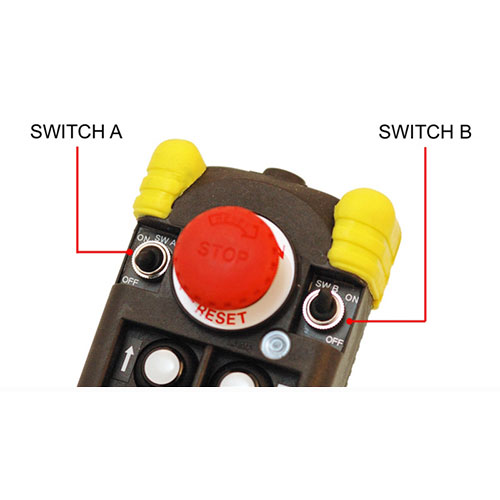

0-1 Toggle Switch


Two 0-1 toggle switch, useful for selection in the overhead crane trolleys sector.

Remote Type Antenna

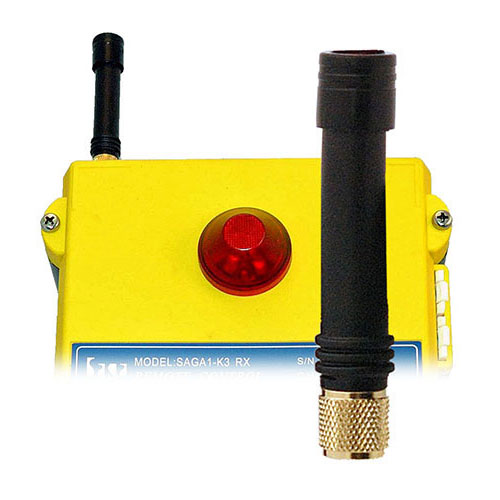

Antenna is easily remotable with BCN connector.

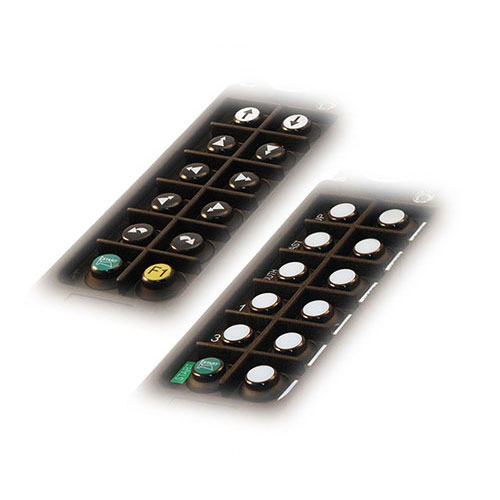

Stickers


Standard interchangeable serigraph.

DOWNLOAD STANDARD SYMBOL

Standard Battery charger


  • 230 V

Complete with 2 set of 2400mA rechargeable batteries.

Antennas


Cable to remotely locate the antenna when the receiver is installed inside a control cabinet.

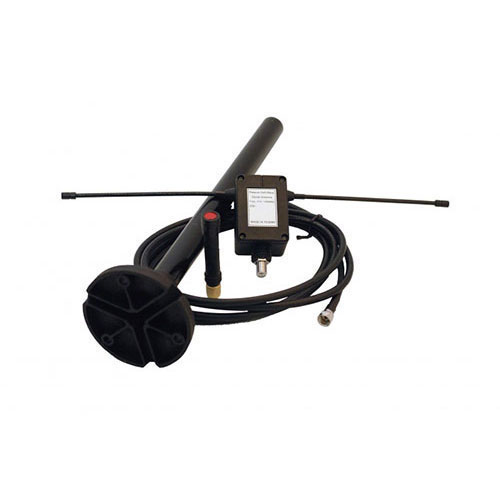

Dipole antenna to increase the reception up to 150m in open field.

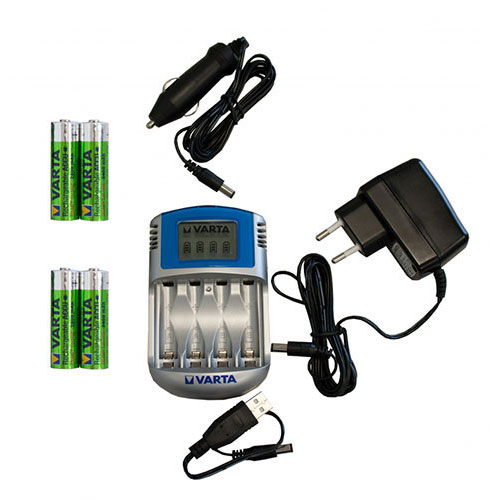

Multi Function Battery Charger


  • 230 V
  • 12/24 V

Complete with plug for car, USB plug and 2 set of 2400mA rechargeable batteries.

Programming


Copier

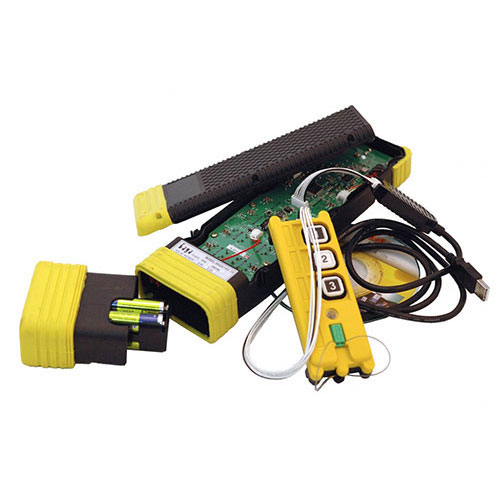

It's available a copier to make a quick copy of the program and a programming software for special functions which can be accessed via USB port and a Pc with Windows System.
