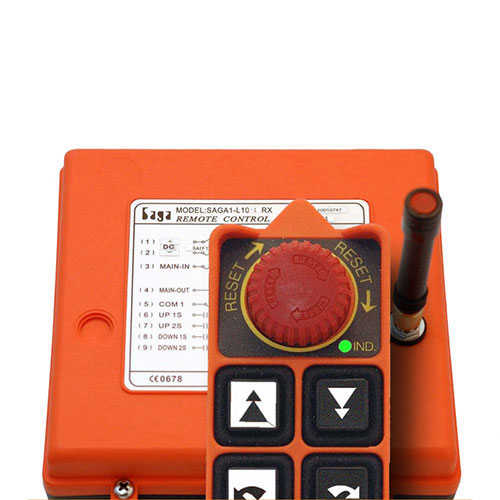

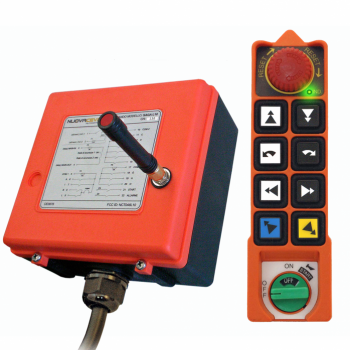

8 Pushbuttons Radio Remote Control SAGA and L10

The first step for self-erecting cranes and bridge cranes control - RADIO TRANSMISSION WITH QUARZ

L10 series is a high technology radio control equipment and it flexibility give a solution for every industrial application.

Special functions are programmable by SOFTWARE available for customers.

  • Strenght is guaranteed by a watertight and shock-resistant enclosures
  • Modern design; pocket size and light weight (155g)
  • Extremely long battery life: 300 hours of continuous transmission
  • Programmable special functions
  • Remote pairing of ID code
  • Wide operating range: up to 100 m
  • Purposely designed for the control of movable and industrial machineries, in the presence of high vibrations and heavy duties

This kind of equipment can be emplyed also on hoist sector on board of tower cranes, gantry cranes, travelling bridge-cranes.

Request information about this product

Main Features

  • Frequency FM 433.0825 / 434.6875 Mhz
  • One channel quartz radio
  • Operating Temperature -45° +80°
  • Operating Distance 100 m in open field + 30 by dipole antenna
  • Hamming distance >4
  • ID Code more than 4,1 billion at 32 bit
  • Enclosure on ABS and fiber glass comparable IP65

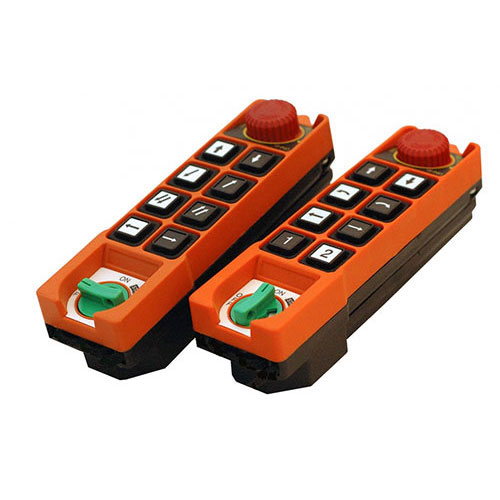

Transmitter Technical Features

  • LxWxH = 163x49x45 mm
  • Weight 200 g (without batteries)
  • Power supply 2 AA 1,5 V alkaline battery
  • RF Power Transmission <4 mW
  • Max Consumption 10mA
  • Standby consumption less than 1 microA
  • Pushbuttons press control
  • LED indicator low battery
  • Shock-proof
  • Pushbuttons stickers customized
  • 2-4-6-8 pushbuttons 2 STEP + safety start key + 1 relay command + stop mushroom button

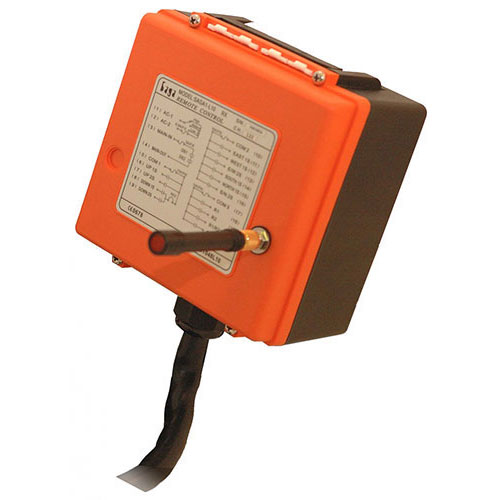

Receiver Technical Features

  • LxWxH = 167x154x88 mm
  • Weight 1400 g (without cable)
  • Power supply 12/24 Vac/dc - 48/110/230 - 24/42/230 Vac
  • Consumption at 24 Vac/dc 31 mA on standby / 128 mA ON - 16mA for each activated relay
  • Relay contact on 250 Vac 10 A
  • Insulation 15 KV
  • Antishock support
  • Remotable antenna
  • Wiring cable already connected
  • 8 Command realy + 4 relay double step
  • Relay start + 1 command relay
  • Stop with double safety relay open guarantee

EC Regulations

  • Safety - EN 60950
  • EMC - EN 301 489/03 - EN 61000/6/2
  • Radio - EN 300 220/3

Global Approvals:
  • F.C.C.
  • RSS210
  • R&TTE
  • L.V.D.

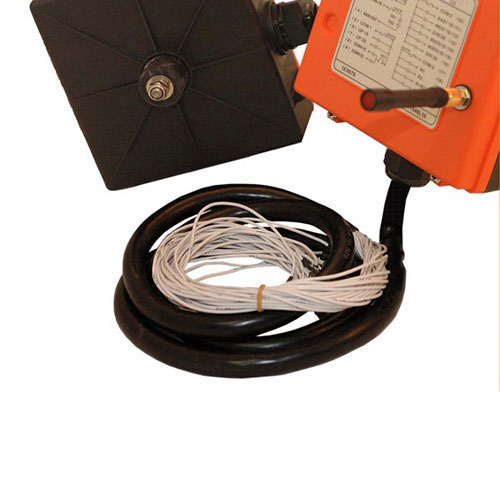

Receiver Fixing and Wiring Cable

Standard equipment with 4 shock absorber mount

Standard connection cable wired

Cover and Strap

Standard provided with a practical case belt clip.

A handy wrist strap for added security while using.

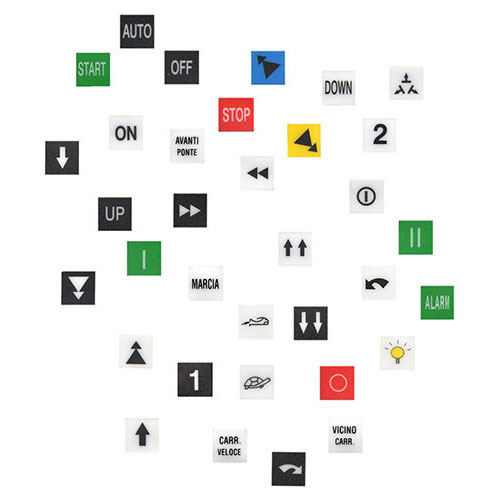

Standard interchangeable serigraph

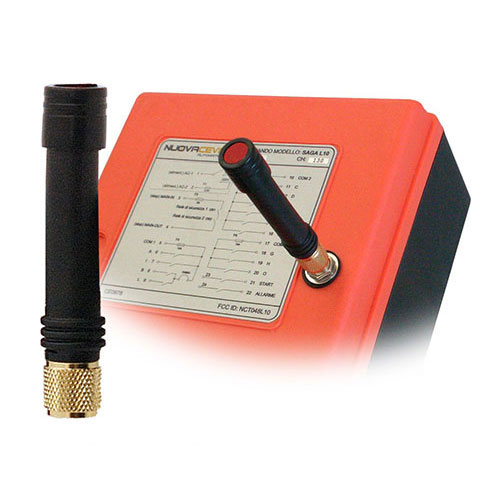

Remote Type Antenna

Antenna is easily remotable with BCN connector.

Standard Battery charger

  • 230 V

Complete with 2 set of 2400mA rechargeable batteries.

Multi Function Battery charger

  • 230 V
  • 12/24 V

Complete with plug for car, USB plug and 2 set of 2400mA rechargeable batteries.


Cable to remotely locate the antenna when the receiver is installed inside a control cabinet.

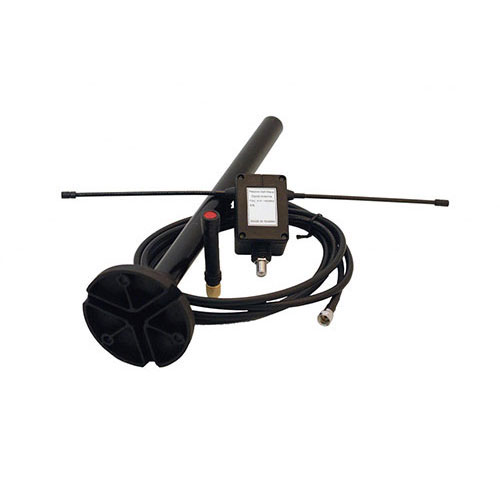

Dipole antenna to increase the reception up to 150m in open field.

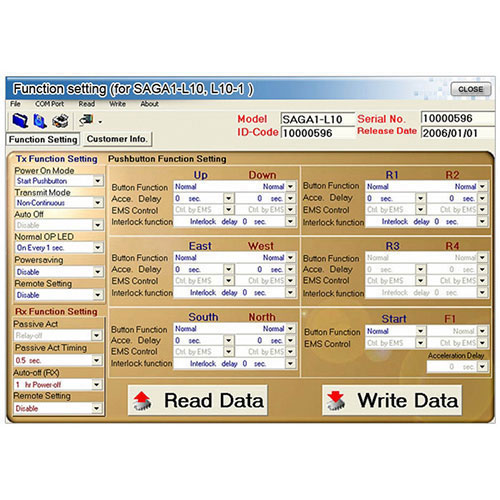

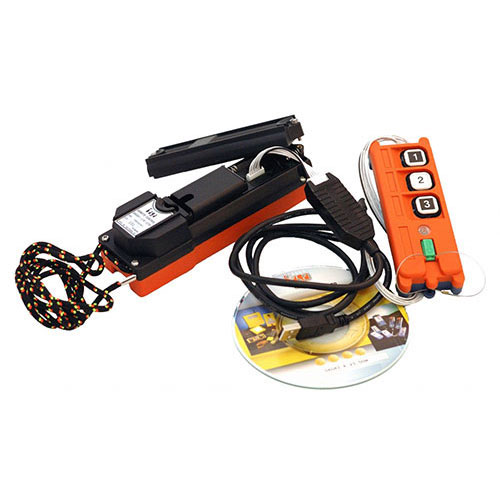

It's available a copier to make a quick copy of the program and a programming software for special functions which can be accessed via USB port and a Pc with Windows System.
