Joysticks Radio Remote Control SAGA L40

PLL RADIO TRANSMISSION – 70 CHANNELS

High technology, great maneuverability

L40 series is a high technology radio control equipment and its flexibility give a solution for every industrial application.

The L40 series, is designed with advanced technologies and fully meets the requirements of various industries. All functions are custom-made to fit your equipments through a simple PC software. Special functions are programmable by SOFTWARE available for customers.
  • Handy overall dimension (230 x 95 x 110 mm)
  • High versatility of command
  • 5 steps speed joystick
  • Practical belt bag
  • Programmable functional logic
  • ID remote setting
  • Transmission: 150 m
  • Purposely designed for the control of movable and industrial machineries, in the presence of high vibrations and heavy duties

This kind of equipment, can be employed also in the lifting sector on board of cranes, hoists and travelling bridge-cranes.

Request information about this product

Main Features


  • Radio PLL 70 channels
  • Frequency FM 433.0825/434.6875 Mhz
  • Operating temperature -45°C + 80°C
  • Operating distance 150 m
  • Hamming distance >4
  • ID codes over 4,1 billions (32 bit)
  • Enclosures nylon + glass fiber (IP65 equivalent)

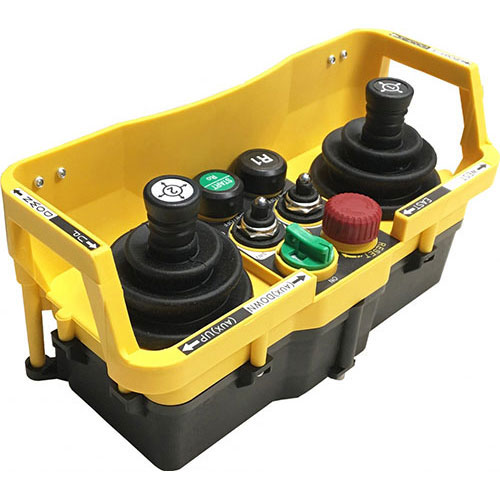

Transmitter Technical Features

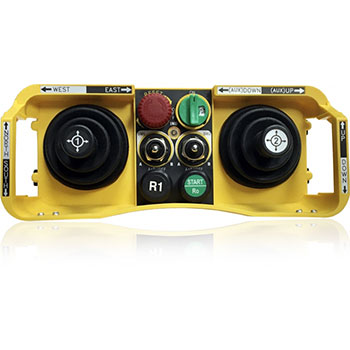

  • 2 joystick 2 axis 5 steps + 2 switch 3 positions + 1 pushbutton auxiliary
  • Key ON + emergency pushbutton
  • Power supply 4 battery AA 1,5 V
  • Weight 0,8 Kg
  • Size mm L 230 x H 110 x P 95
  • Power output <10mW
  • Maximum consumpion 10 mA
  • Standby consumption less than 1 micro A
  • LED for low level battery
  • Radio PLL 70 channels
  • Operating temperature -45° +80°
  • Operating distance 150 m
  • ID code more than 4, 1 billion at 32 bit

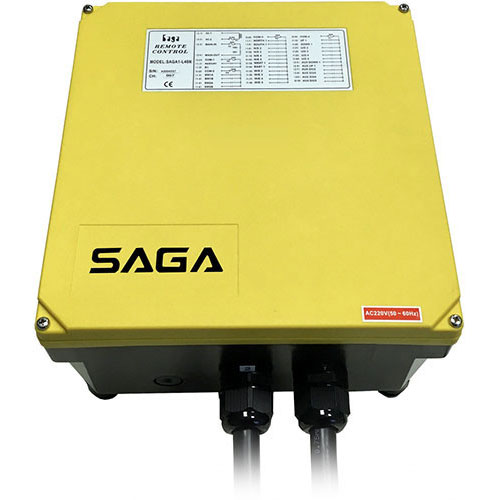

Receiver Technical Features


  • H x L x D = 253 x 267 x 150 mm
  • Weight = 3 Kg (escluded cable)
  • Power supply 48 or 230 Vac
  • Consumption at 24 Vac/dc - 32 mA in stand by – 148 mA ON - 18 mA each relay ON
  • Relay contact 250 Vac - 10 A
  • Insulating voltage 15 KV
  • Connection cable included

EC Regulations


  • Safety - EN 60950
  • EMC - EN 301 489/03 - EN 61000/6/2
  • Radio - EN 300 220/3
  • EN 50731

Global approvals:
  • F.C.C.
  • RSS210
  • R&TTE
  • L.V.D.

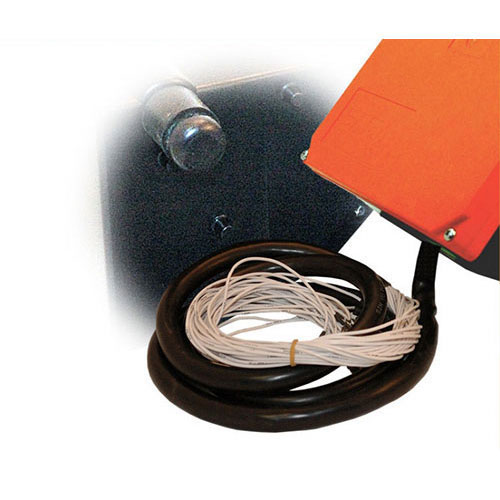

Receiver Fixing and Wiring Cable



Standard equipment with 4 shock absorber mount.

Standard connection cable wired

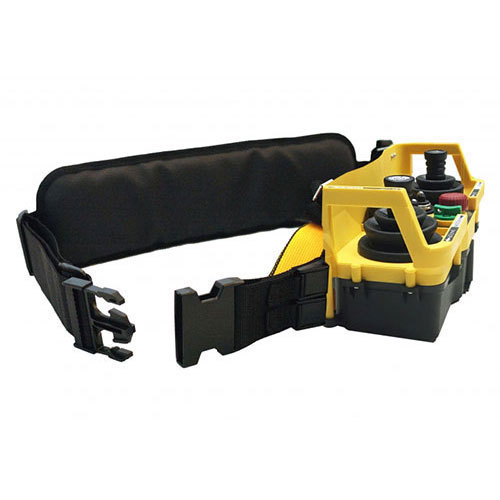

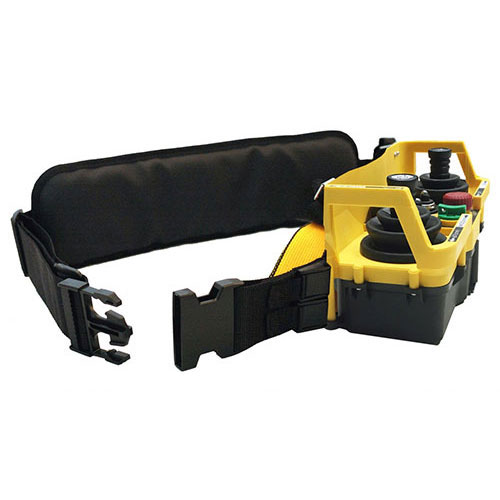

Waist Belt


Is standard provided a practical belt pouch for more security during use.

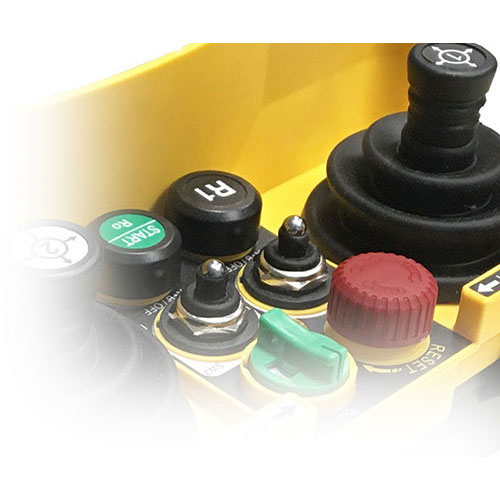

Control Console


3-positions switch selector to control multifunctional machines.

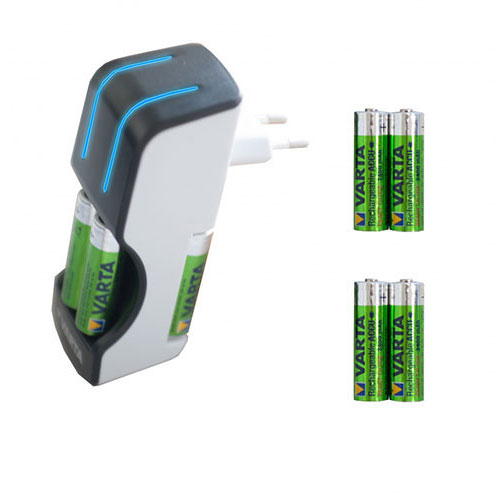

Standard Battery Charger


  • 230 V
  • Complete with 2 set of 2400mA rechargeable batteries.

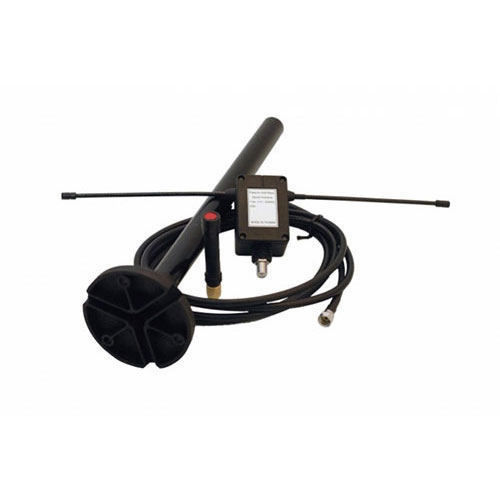

Antennas


Cable to remotely locate the antenna when the receiver is installed inside a control cabinet.

Dipole antenna to increase the reception.

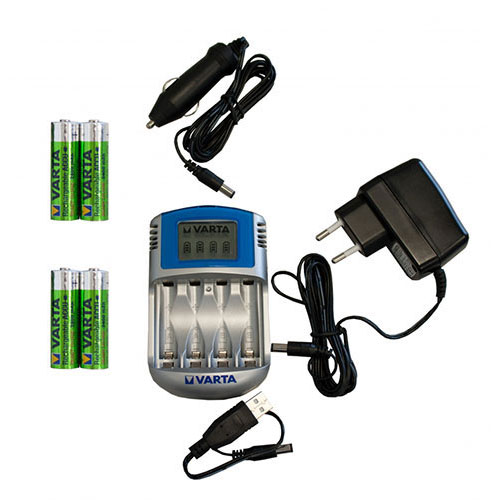

Multi Function Battery Charger


  • 230 V
  • 12/24 V

Complete with plug for car, USB plug and 2 set of 2400mA rechargeable batteries.

Programming


Copier

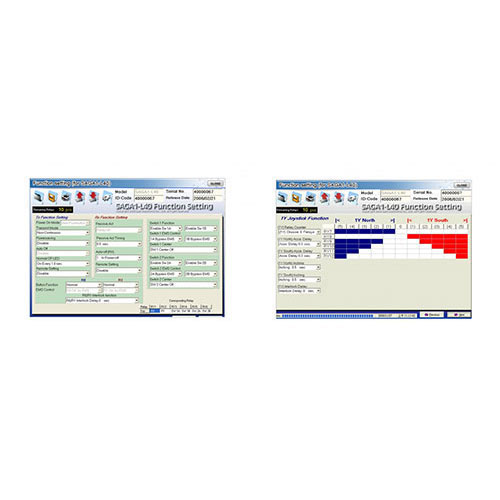

It's available a copier to make a quick copy of the program and a programming software for special functions which can be accessed via USB port and a Pc with Windows System.
