SLIP RINGS - PRN Roller Plus series
Roller series PRN Roller Plus VERSION
Cutting edge technology contained in a rotating electrical joint.
The innovative Slip Ring Roller Plus combines the best technical features of the previous models Roller and Kombi-Roller, being an outstanding evolution.

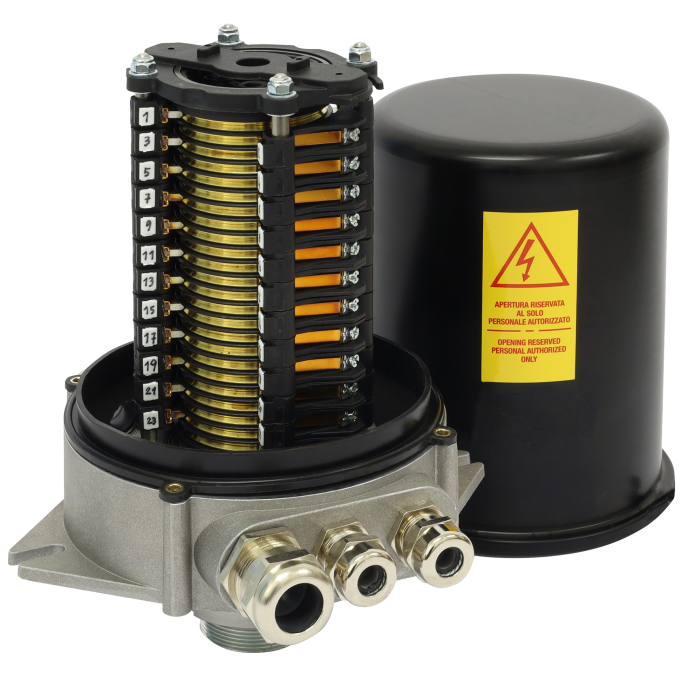

Roller Plus encapsulates high rotation speed, IP65 protection degree and high mechanic resistance aluminium cover and bottom. It also guarantees executions up to max 36 rings and the optimisation of the consumption of the brushes.
Roller Plus is an irreplaceable ally when it comes to applications in packaging lines that require air passages, which the new Roller Plus is already internally predisposed to: space saving and reduced weight of the device, combined with guaranteed high-performance standards.
Equipped and provided with cable and brush wiring, Roller Plus ensures a considerable saving of time and money to the operator, who receives a device ready to be used.
Rotating electrical joint Roller Plus, as well as Roller Slip Ring, offers a remarkable advantage in maintenance: if needed, it’s possible to take action on the brushes avoiding the removal of the installed slip ring.
- Technical Features
- Standards
- Models
- Download
Main Performances
- Housing in aluminum
- Positioning on vertical axis, with cover assembled on top
- Connections rings cabled with 2m cable
- Cable entry inside the fastener pipe for the rings and through the side cable inlets for brush holders
- Brushes 10A copper graphite, silver graphite for signals
- Executions from 23 to 36 rings 10A
- Optional 1/4" air passage
Electrical Features
- Nominal voltage 400V ac - dc
- Nominal current Ith 10A
- Test voltage 2kV
- Insulation resistant >200MOhm at 500V ac - dc
- Max rotating speed 100 revs/min
- Operating temperature -20°C ~ +60°C
Regulations
Directives:
- 2014/35/UE
- 2014/30/UE
- 2006/42/CE
Armonized rules:
- EN 60947-1
- EN 60529
- EN 60204-1
Marking:
- UE
Protection degree:
- IP 65
Electrical passages
| Code | Rings type | H = mm |
| GPRNA23 | 23 x 10A | 177 |
| GPRNA27 | 27 x 10A | 198 |
| GPRNA36 | 36 x 10A | 240 |
Electrical passages + 1/4" - 10 bar air passage
| Code | Rings type | H = mm |
| GPRNA19K3F1 | 19 x 10A + 1 x 1/4" | 177 |
| GPRNA23K3F1 | 23 x 10A + 1 x 1/4" | 198 |
| GPRNA32K3F1 | 32 x 10A + 1 x 1/4" | 240 |
